USS HERPERS FERRY LSD 49
SLCP
05 LEVEL

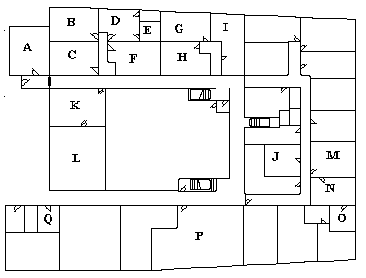

A. Troop Officer Rec Room / Surge Berthing (7)
05-43-4-L
B. Troop Officer Bunkroom (4) 05-40-4-L
C. Troop Officer Bunkroom (4) 05-40-2-L
D. Troop Officer WR / WC - 05-37-2-L
E. Troop Officer Shower / Drying Area 05-35-10-L
F. Troop Officer Bunkroom (4) 05-35-8-L
G. Troop Officer Bunkroom (4) 05-32-6-L
H. Troop Officer Bunkroom (4) 05-32-2-L
I. Female Troop Officer Bunkroom (4) 05-29-4-L
J. Female Officer WR / WC 05-25-1-L
K. Troop Admin Office 05-39-2-Q
L. TACLOG 05-39-0-Q
M. Troop CO Cabin 05-21-1-L
N. Troop CO Stateroom 05-21-3-L
O. Troop CO Bath 05-21-5-L
P. SNCO / CPO Berthing (15) - Surge Berthing
(7) 05-29-1-L
Q. Female SNCO Berthing (3) 05-43-3-L
Drawing not to scale. Refer to CAEMS for scale loading diagrams
USS HARPERS FERRY LSD-49 (CV)
SHIP’S LOADING CHARACTERISTICS PAMPHLET
