USS HARPERS FERRY LSD-49 (CV) SHIP’S LOADING CHARACTERISTICS PAMPHLET

---

USS HERPERS FERRY LSD 49 SLCP

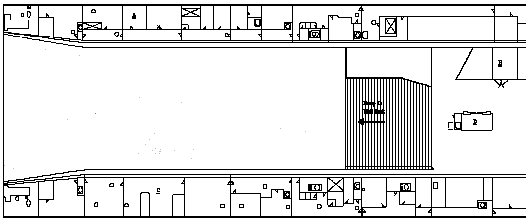

2nd Deck (Aft)
                                          A. Marine Embarkation Work left - 2-126-2-Q
                                          B. Troop Ammunition Magazine #4 (White Phosphorus)
                                               (Under Ramp) - 1-78-2-M
                                          C. Laundry Receiving & Issue - 2-115-1-Q
                                          D. Troop Cargo Storeroom - 4-81-0-A


Drawing not to scale. Refer to CAEMS for scale loading diagrams
