USS HARPERS FERRY LSD-49 (CV) SHIP’S LOADING CHARACTERISTICS PAMPHLET

---

USS HERPERS FERRY LSD 49 SLCP

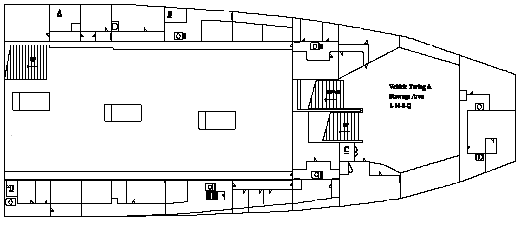

Main Deck (Forward)
                                          A.  LCAC Maintenance Office - 1-63-4-Q
                                          B.  Troop Life Jacket Locker - 1-49-2-Q
                                          C.  Elevator Trunk - 5-27-1-T
                                                Serves 3rd Deck - 2nd Deck - Main Deck
                                          D.  Troop Life Jacket Locker - 1-72-1-Q


Drawing not to scale. Refer to CAEMS for scale loading diagrams
