USS HARPERS FERRY LSD 49
SLCP

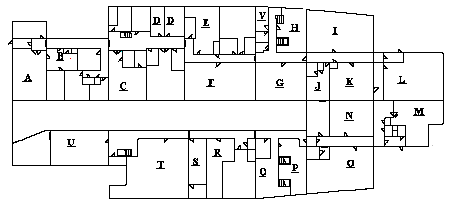

O2 LEVEL
A. Ward - 02-59-2-L L. Troop Living Space (21) - 02-14-2-L
B. Surgical Dressing Room - 02-49-2-L M. Troop Armory - 02-14-0-L
C. Medical Operating Room - 02-43-2-L N. Troop Living Space (18) - 02-21-1-L
D. Dental Operating Rooms - 02-46-2-L/02-43-8-L O. Ship Store - 02-21-5-Q
E. Troop Living Space (12) - 02-39-2-L P. Troop Rec Room #4/Surge Berthing (12) - 02-29-3-L
F. Troop Living Space (30) - 02-35-2-L Q. Vending Machine Area
G. Troop Living Space (18) - 02-29-2-L R. Troop Rec Room #5/Surge Berthing (20) - 02-37-1-L
H. Troop Living Space (9) - 02-29-6-L S. Troop WR/WC/Shower - 02-41-1-L
I. Troop Living Space (27) - 02-21-6-L T. Troop Living Space (33) - 02-43-3-L
J. Troop WR/WC/Shower - 02-26-0-L U. Troop Living Space (24) - 02-52-1-L
K. Troop Rec Room #1/Surge Berthing (20) - 02-21-2-L V. Troop Female WR/WC/Shower - 02-34-6-L
Drawing not to scale. Refer to CAEMS for scale loading diagrams
IV-26
USS HARPERS FERRY LSD-49 (CV)
SHIP’S LOADING CHARACTERISTICS PAMPHLET
