USS HARPERS FERRY LSD-49 (CV) SHIP’S LOADING CHARACTERISTICS PAMPHLET

Undisplayed Graphic

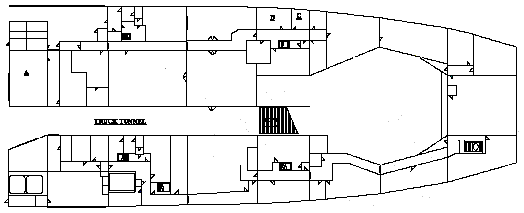

01 LEVEL

                                          A. LCAC Engine Storeroom - 01-59-2-A
                                          B. LCAC Admin Office - 01-31-2-Q
                                          C. Troop Cargo Storeroom #1 - 01-29-8-A


Drawing not to scale. Refer to CAEMS for scale loading diagrams


II-7
