USS OGDEN LPD-5 SHIP'S LOADING CHARACTERISTICS PAMPHLET



Undisplayed Graphic


USS OGDEN (LPD-5)

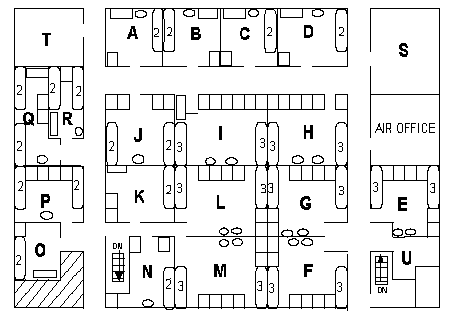

TROOP OFFICER’S BERTHING

BERTHING

A.  01-96-4-L       2 BUNKS         J.  01-102-2-L      4 BUNKS
B.  01-96-2-L       2 BUNKS         K.  01-108-2-L      2 BUNKS
C.  01-96-1-L       2 BUNKS         L.  01-108-0-L      6 BUNKS
D.  01-96-3-L       2 BUNKS         M.  01-114-0-L      6 BUNKS
E.  01-108-3-L      6 BUNKS         N.  01-114-2-L      2 BUNKS
F.  01-114-1-L      6 BUNKS         O.  01-111-2-L      2 BUNKS
G.  01-108-0-L      6 BUNKS         P.  01-108-4-L      4 BUNKS
H.  01-102-1-L      6 BUNKS         Q.  01-100-4-L      4 BUNKS
I.  01-102-0-L      6 BUNKS         R.  01-100-2-L      4 BUNKS
HEADS

S. 01-96-5-L 3 SHR, 1 LAV, 6 WC, 2 UR, 1 DS T. 01-96-6-L 4 SHR, 1 LAV, 3 WC, 1 UR, 1 DS
MISC.

U. 01-114-3-Q OFFICER/CPO BARBER SHOP (ONE CHAIR)
